Product Details
＋

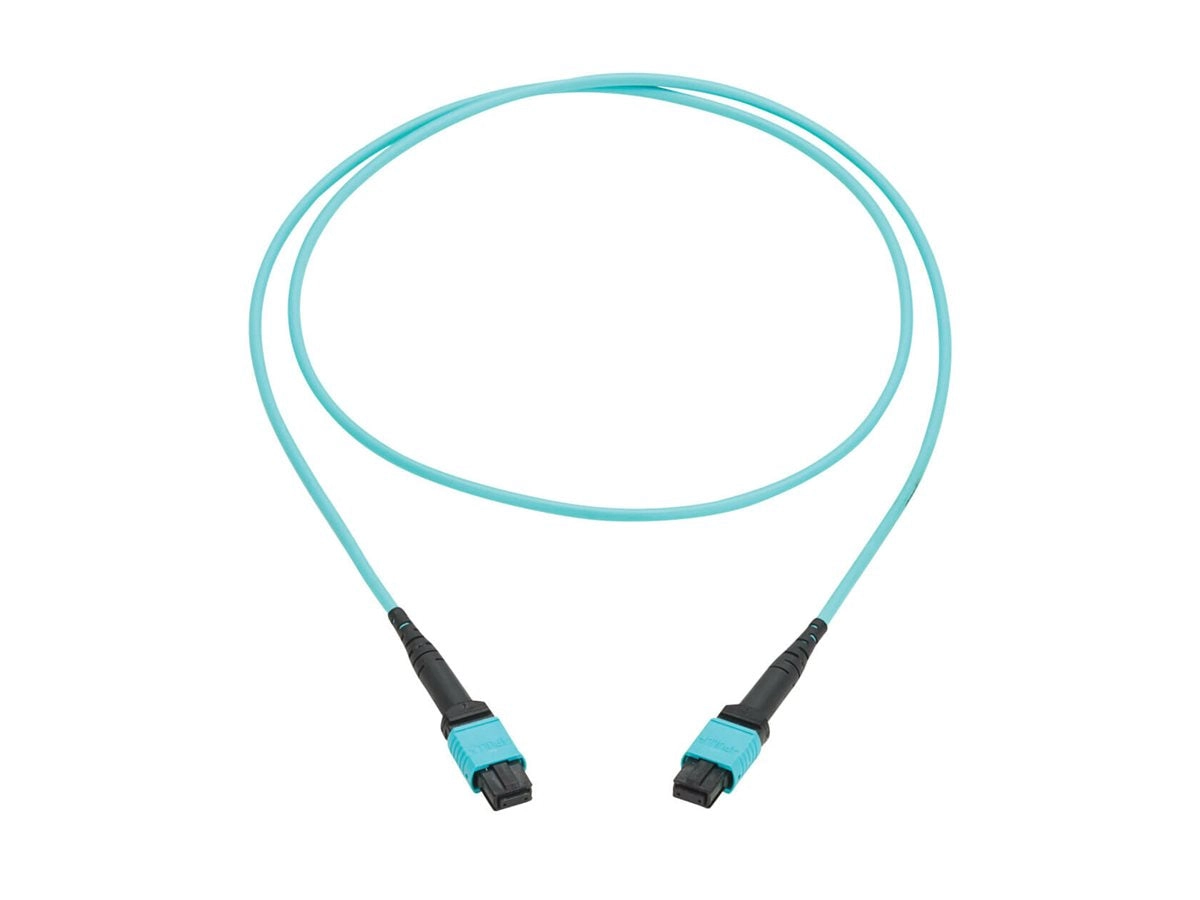

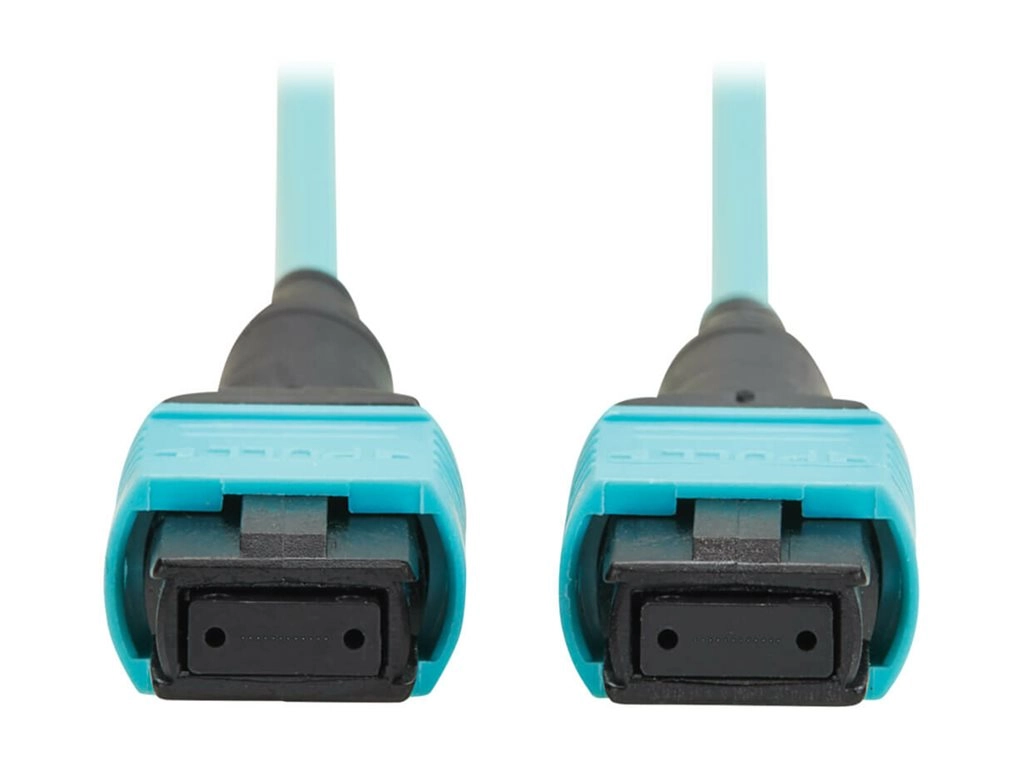

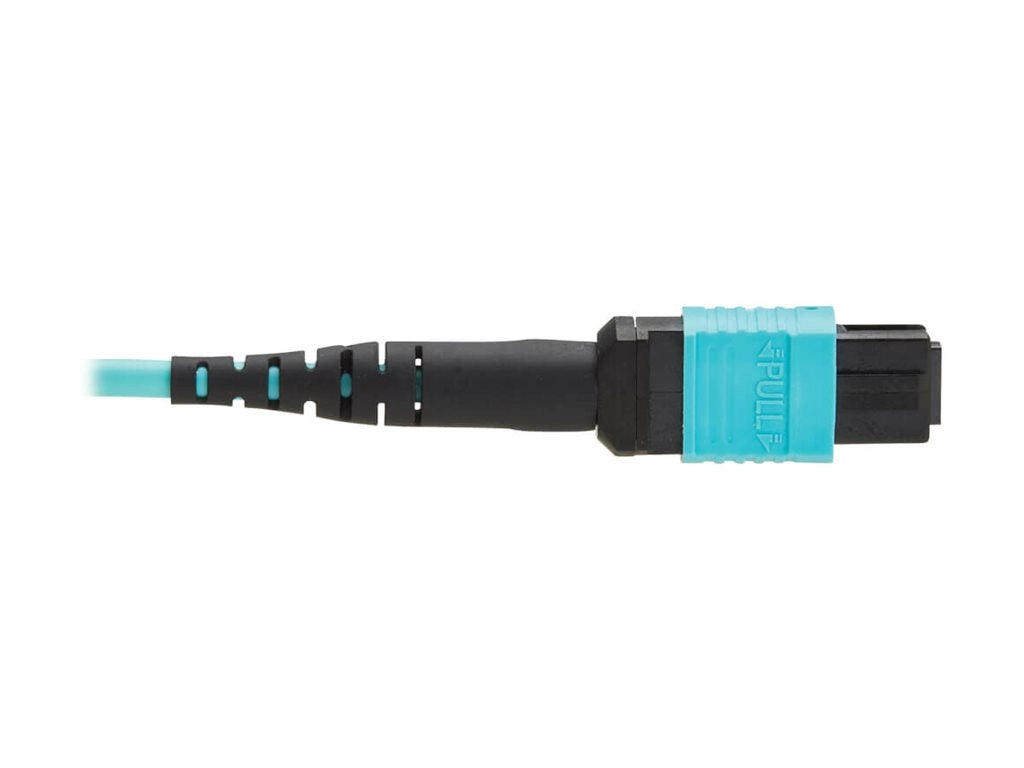

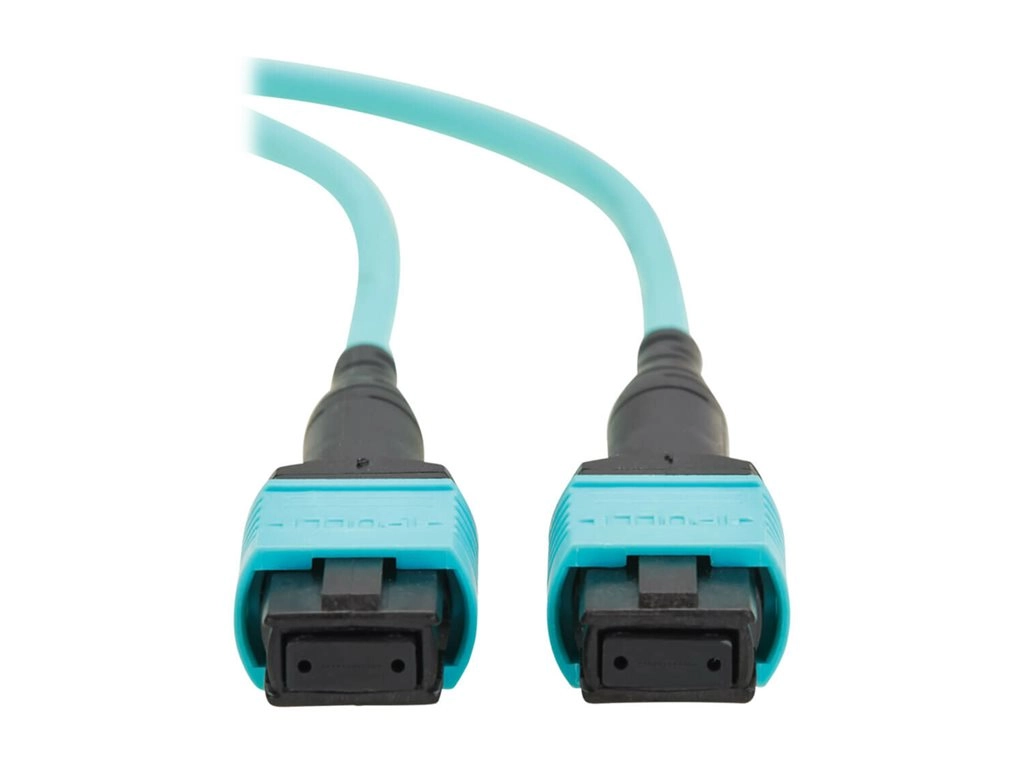

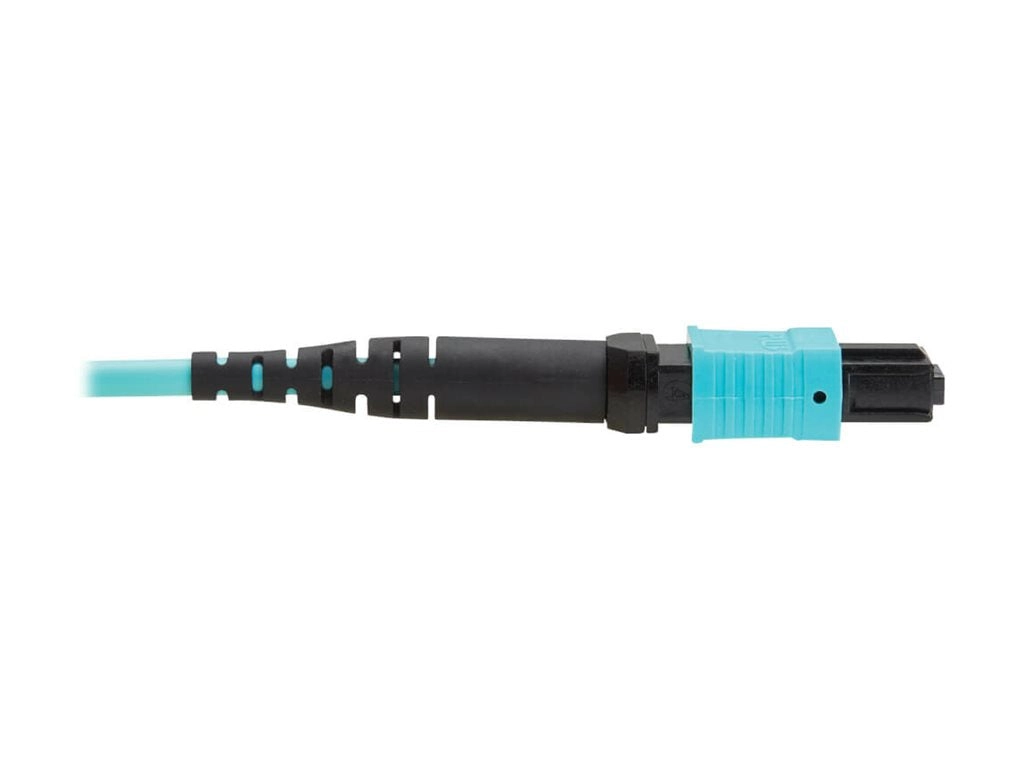

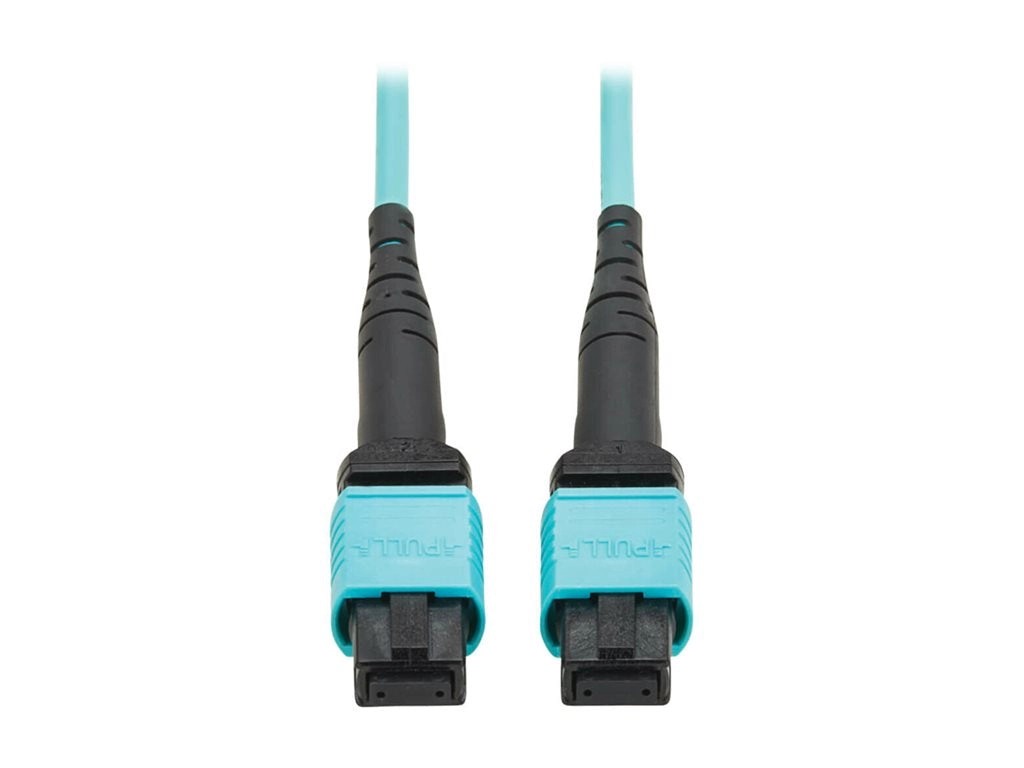

Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable 12F MPO/MPO-PC F/F Type-B Polarity OFNP Aqua 1M TAA - Network cable - TAA Compliant - MPO-12 type-B multi-mode (F) to MPO-12/PC multi-mode (F) - 1 m - 0.1 in - fiber optic - 50 / 125 micron - OM4 - OFNP - aqua
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-01M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Performance transmission
Equipped to handle up to 400 Gbps, the Eaton Tripp Lite Series cable ensures rapid data exchange, ideal for high-bandwidth applications. - Precision engineering
With a core and cladding diameter of 50/125 microns, this network cable is designed for optimal light transmission and minimal loss. - Flexible installation options
The cable’s bending radius of 10 mm static and 20 mm dynamic allows for versatile routing in tight spaces without risk of damaging the cable. - Low insertion loss
The cable features a 0.6 dB insertion loss, contributing to efficient signal transmission and enhanced network performance. - Reliable environmental standards
Manufactured in compliance with RoHS and REACH standards, this product aligns with sustainability and safety regulations.
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-01M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- This product is covered by a Lifetime limited warranty
